Parameterize Selection in CNC Simulator Pro

Introduction

The "Parameterize Selection" feature in CNC Simulator Pro allows users to convert specific values in a selected section of G-code into parameters. This function is particularly useful for creating flexible and reusable CNC programs, where values can be adjusted by simply changing the parameter values rather than modifying the entire code.

How to Use the Parameterize Selection Feature

Step 1: Select the Code

- Open your CNC program in the CNC Simulator Pro editor.
 - Highlight the section of the G-code that you want to parameterize. This could be specific coordinates, speeds, feed rates, or any other numeric values that you wish to control via parameters.

Step 2: Access the Parameterize Function

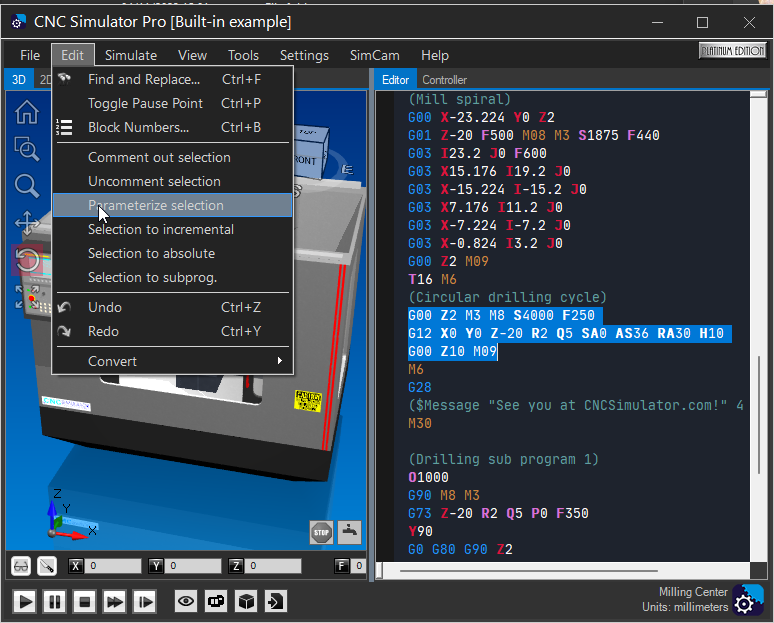

- With the section of code highlighted, go to the Edit menu at the top of the CNC Simulator Pro window.
 - From the dropdown menu, click on Parameterize Selection.

Step 4: Save and Use

- After parameterizing the code, save your program. You can now run the CNC simulation using these parameters, and any adjustments to the parameter values will automatically update the corresponding parts of the code.

Benefits of Parameterization

- Flexibility: Easily adjust tool paths, feed rates, and other values by changing the parameters.
- Reusability: Apply the same code to different jobs by only modifying the parameters, saving time and reducing the likelihood of errors.
 - Efficiency: Streamline the process of creating CNC programs, especially for repetitive tasks.

Example Usage

Below is an example of how a simple drilling cycle can be parameterized:

Before Parameterization:

G00 Z2 M3 M8 S4000 F250
G12 X40 Y0 Z-20 R2 Q5 SA36 RA30 H10
 G00 Z10 M09

After Parameterization:

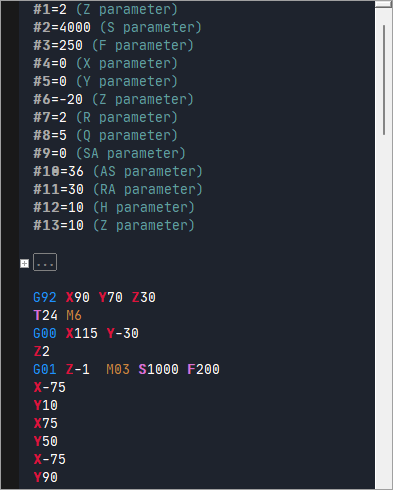

#1=2
#2=4000
#3=250
#4=40
#5=0
#6=-20
#7=2
#8=5
#9=36
#10=30
#11=10

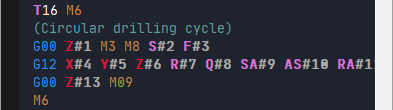

G00 Z#1 M3 M8 S#2 F#3
G12 X#4 Y#5 Z#6 R#7 Q#8 SA#9 RA#10 H#11
 G00 Z10 M09

With this setup, adjusting any operation, such as changing the spindle speed, is as simple as modifying the value of #2.
